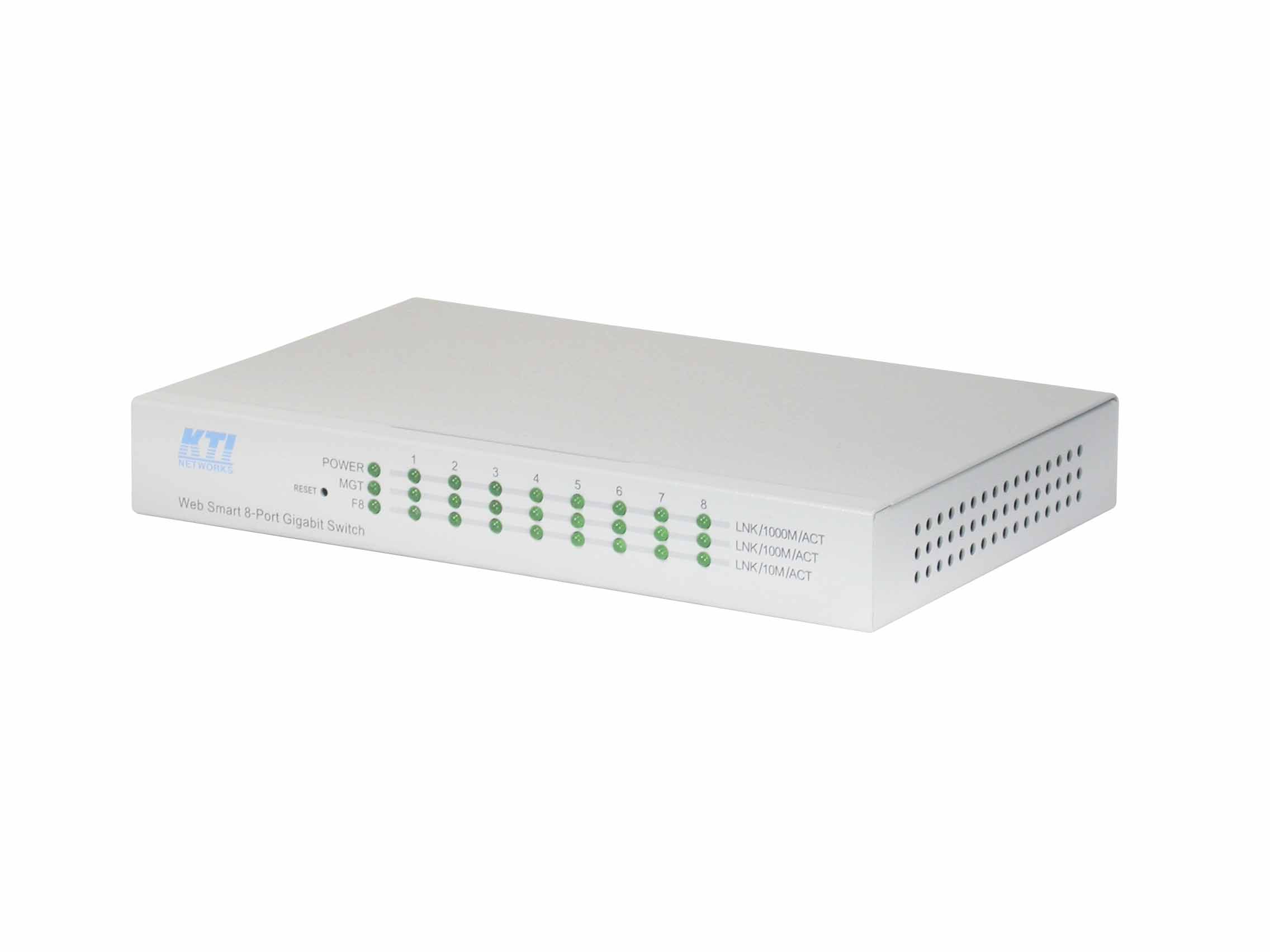

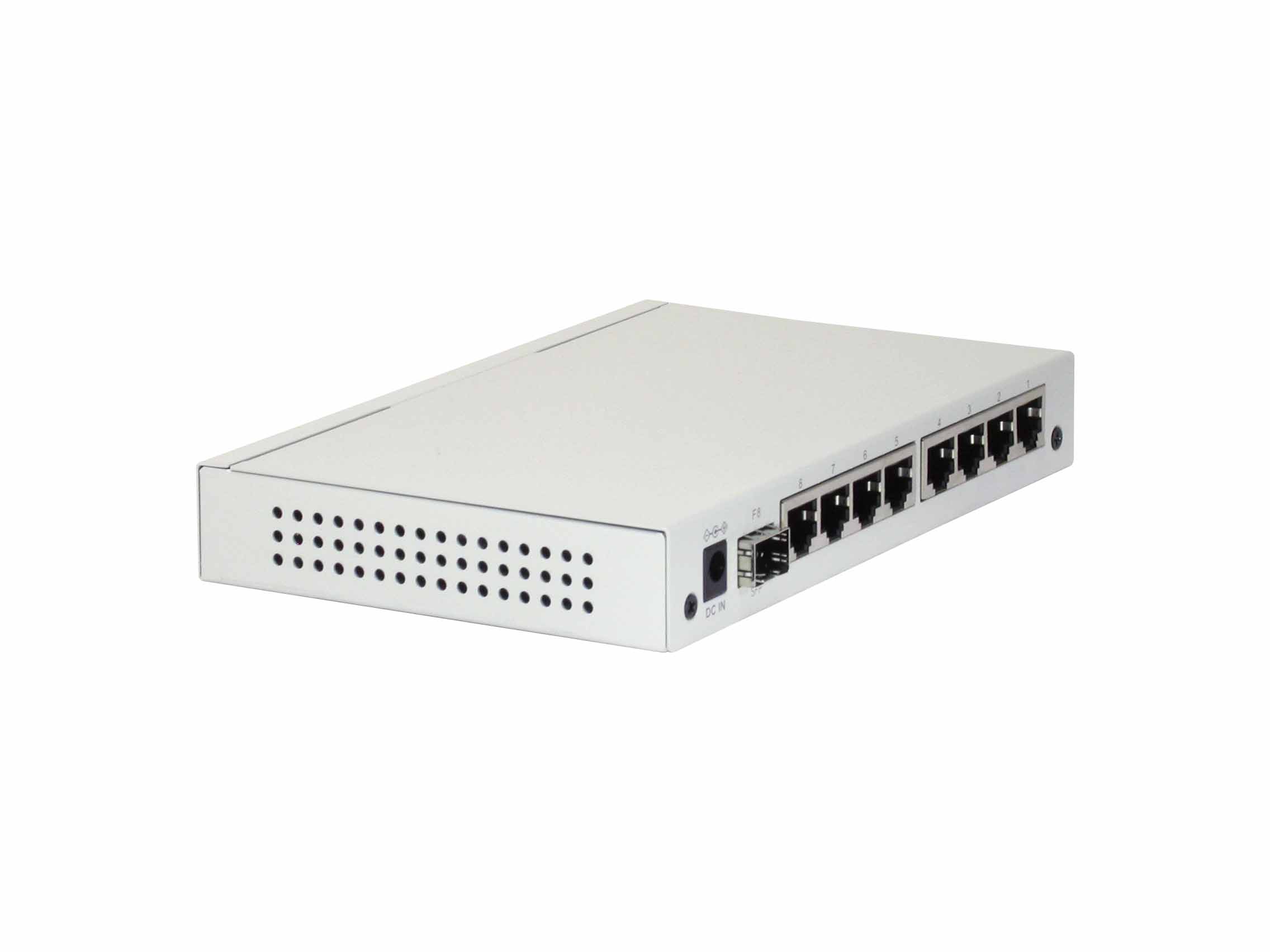

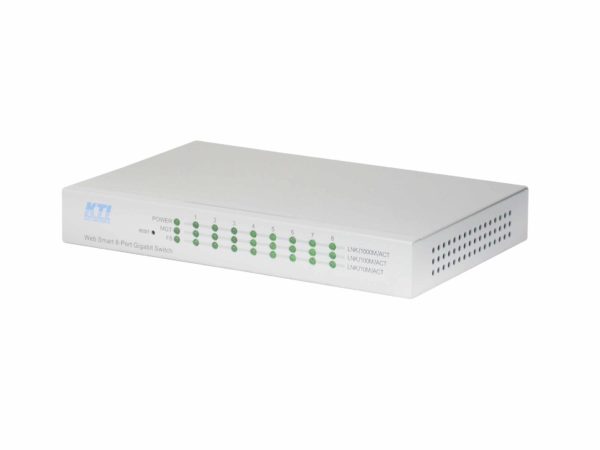

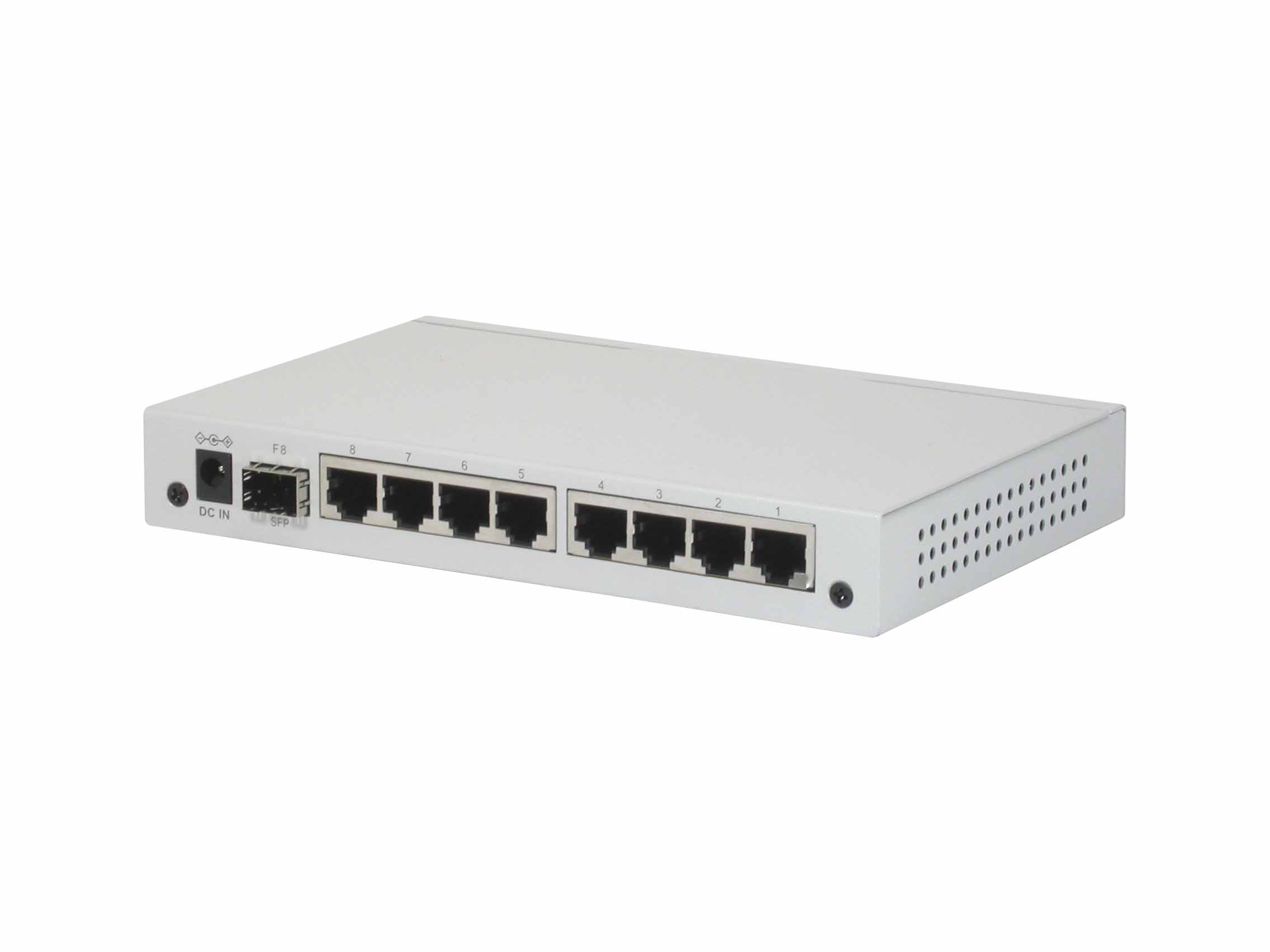

Web Smart 8-Port L2 Gigabit Ethernet Switch with 1 mini-GBIC Port
360 Viewer
150x150-CE
150x150-FCC

KGS-810F

KGS-810F

KGS-810F
KGS-810F - Image 2
KGS-810F - Image 3
KGS-810F - Image 4
Web Smart 8-Port L2 Gigabit Ethernet Switch with 1 mini-GBIC Port
Web Smart 8-Port L2 Gigabit Ethernet Switch with 1 mini-GBIC Port
Web Smart 8-Port L2 Gigabit Ethernet Switch with 1 mini-GBIC Port

KGS-810F

360 Viewer
150x150-CE
150x150-FCC

Description

The KGS-810F is a managed Gigabit Ethernet switch which is featured with the following switched ports: Seven 10/100/1000Mbps Gigabit copper ports One combo port – 10/100/1000Mbps copper & 1000Base-X SFP

Key Features:

  • Provides 8 10/100/1000Mbps RJ-45 and one 1000M SFP slot
  • Provides in-band web-based and SNMP management interface
  • Copper ports support auto-negotiation and auto-MDI/MDI-X detection.
  • Provides full wire speed forwarding
  • Supports 802.3x flow control for full-duplex and backpressure for half-duplex
  • Provides port status, statistic monitoring and control function
  • Supports DHCP IP configuration
  • Supports port-based and 802.1Q Tag-based VLAN
  • Provides QoS function
  • Provides link aggregation (port trunking) function with LACP support
  • Provides port mirroring function
  • Provides 802.1X authentication for port access
  • Supports 802.1w RSTP, 802.1D STP
  • Watchdog timer function
  • Supports SFP with Digital Diagnostic Monitoring (DDM)
  • Provides packet storm control function
  • In-band embedded firmware upgrade function

Specification

Standard IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.1x, 802.1w, 802.1D, 802.1Q
Network Ports 7 10/100/1000Mbps Gigabit copper ports
1 combo port -10/100/1000Mbps copper & mini-GBIC SFP
Copper Port Shielded RJ-45, 10/100/1000Mbps, auto-negotiation, auto-MDI/MDI-X support
Mini-GBIC SFP Gigabit Ethernet 1000Base-X compliant SFP connector
Network Cables 10/100/1000Mbps copper: Cat.5 up to 100m
1000Base-X: 62.5/125µm, 50/125µm MM fiber, 9/125µm SM fiber
MAC Addresses Table with 8K entries
VLAN Function Port based VLAN, 8021Q Tag-based VLAN
Port Link Aggregation Static trunking groups: 2 max., Ports/group: 2, LACP link aggregation
QoS Function 4 priority queues, Classification: Port-based, 802.1p, IP DSCP
LED Indication Per unit: Power, management status
Per port: 1000M,100M, 10M speed/link/activity status
Web Management Web browser software
System settings, port status/statistics, port control, VLAN, QoS,
Link aggregation, port mirroring, Firmware upgrade
802.1x, 802.1w, Configuration backup and restore
SNMP Support SNMP v1, v2c management
MIB-II, Event traps
DC Power Input DC jack: -D 6.3mm/+D 2.0mm
Operating voltage range: +5 ~ +12VDC (+/-5%)
Power Consumption: 7.3W max.
Housing Enclosed metal with no fan
Dimension 180 x 114 x 26 mm (WxDxH)
Mounting Support Desktop, DIN-Rail, Panel Mounting (optional)
Environment Operating Temperature: -5°C ~ 50°C
Storage Temperature: -20°C ~ 85°C
Relative Humidity: 10% ~ 90% non-condensing
Approval FCC Class A, CE mark Class A
