KGS-2422-TG

Managed 26-Port Modular L2/L3 Gigabit Ethernet Switches with 10G Uplink Support

KGS-2422-TG

Managed 26-Port Modular L2/L3 Gigabit Ethernet Switches with 10G Uplink Support
360 Viewer

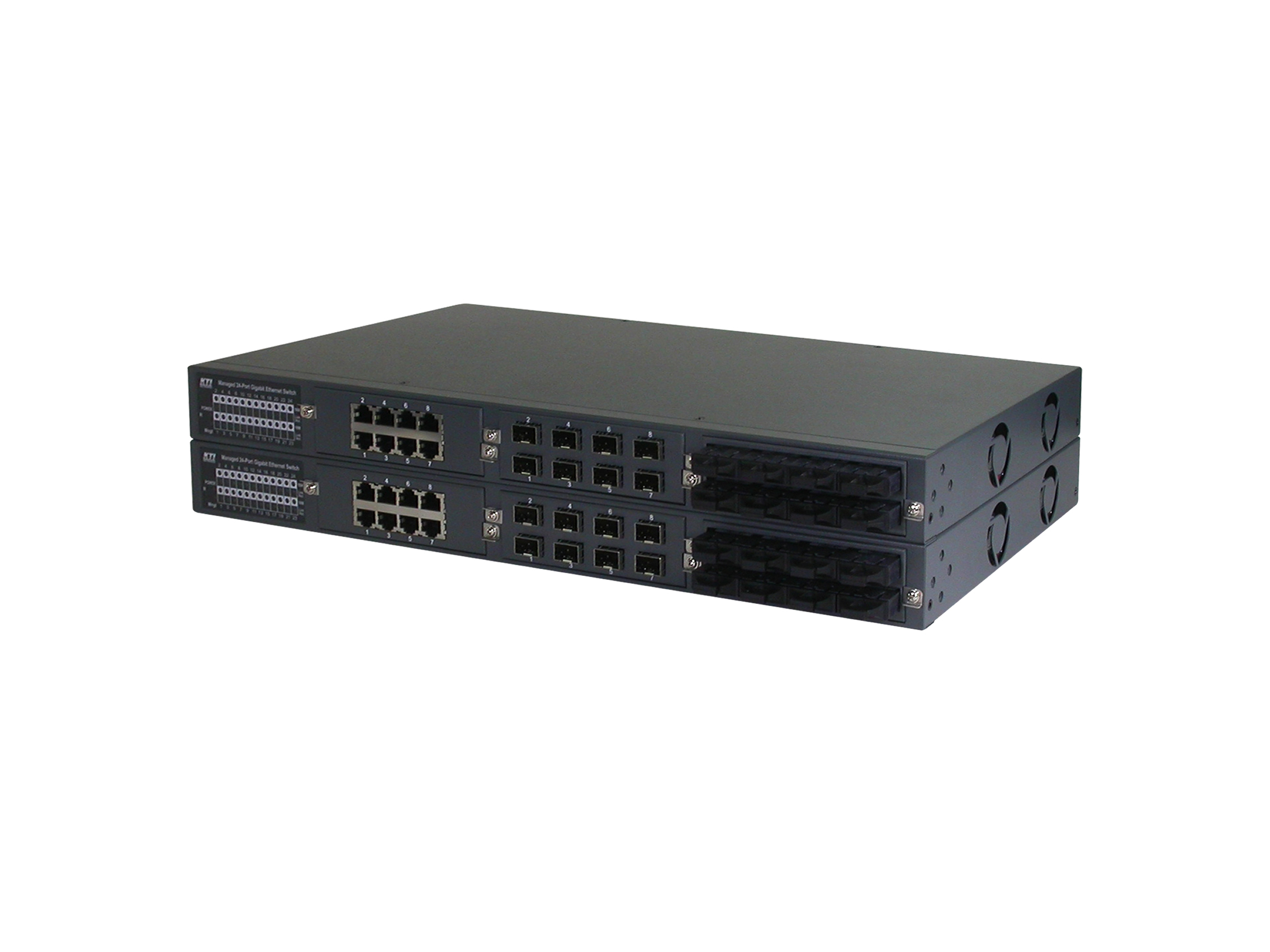

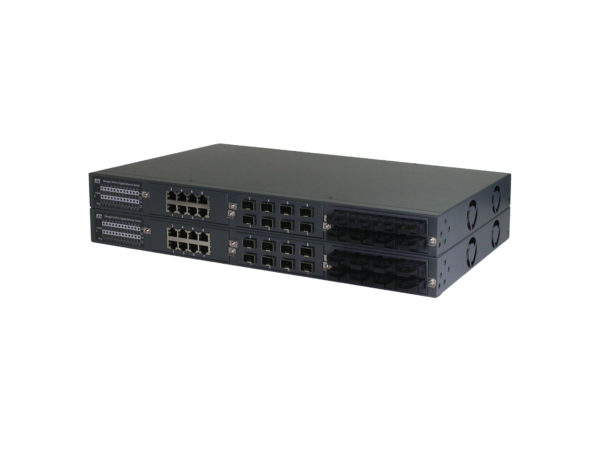

The 26-port Managed Gigabit Ethernet Switches are standard L2/L3 switches that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet specifications. The switches provide three 8-port modular slots. Each slot can accommodate one 8-port module. A variety of 8-port modules is available for selection. The switches provide two 10GBASE SFP+ slots on the rear panel. The SFP+ slots can be installed with 10GBASE optical fiber transceivers for high bandwidth fiber connection.

Key Features:

  • Fully modular design with three 8-port module slots supporting Gigabit and Fast Ethernet
  • A variety of optional 8-port modules is available for selection including Gigabit copper, SFP fiber
  • mix of copper and SFP fiber, and Fast Ethernet fibers
  • The copper ports support 10/100/1000Mbps auto-negotiation and auto-MDI/MDI-X.
  • The SFP ports support both 100BASE-FX and 1000BASE-X SFP fiber transceivers.
  • The Fast Ethernet fibers include variety of 100BASE-FX with SC/ST/BiDi transceivers.
  • Flexible installation with any combination of different modules in one rack
  • Provide two 10G SFP+ uplink ports
  • The SFP+ ports support both 1000BASE-X and 10GBASE-X SFP fiber transceivers
  • Provide L2 switching at Gigabit full wire speed
  • Provide L3 switching functions for IPv4/IPv6 Unicast static routing and IPv4 Multicast static routing
  • Support console/Web/Telnet/SSH/HTTPS/SNMP interfaces for switch management
  • Support configurable maximum frame length from 1518 up to 10240 jumbo frame
  • Support port-based ,802.1Q tag-based VLAN and private VLAN
  • Provide tag-based and DSCP-based QoS function
  • Support port bandwidth control for ingress and egress
  • Support packets storm control function for broadcast, unicast and multicast
  • Support LACP port link aggregation
  • Support MAC address learning, ageing and filtering control
  • Support IEEE 802.1d, 802.1w, 802.1s STP(Spanning Tree Protocol), RSTP, MSTP
  • Provide port mirroring function
  • Provide IP Multicasting with IGMP & MLD Snooping function
  • Support DHCP client & server for dynamic IP configuration
Standard IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.1x, 802.1w, 802.1D, 802.1Q
Module Slots 3 slots
Module Solutions 8-Port 10/100/1000BASE-T Gigabit Ethernet copper module
8-Port 100BASE-FX/1000BASE-X SFP fiber module
8-Port mix of 10/100/1000 copper and 100/1000 SFP fiber module
8-Port 100BASE-FX fiber modules (SC/ST/BiDi-SC)
6-Port 100BASE-FX fiber plus 2-Port 10/100/1000BASE-T copper module
Copper Ports Shielded RJ-45, 10/100/1000Mbps, auto-negotiation, auto-MDI/MDI-X support
SFP Slots Slots for 100BASE-FX SFP or 1000BASE-X SFP fiber transceivers
100M Fiber Ports 100BASE-FX fiber transceivers supporting MMF and SMF
10G SFP+ Slots Slots for 1000BASE-X SFP or 10GBASE-X SFP fiber transceivers
Direct Attach Cable (DAC) and Active Optical Cable (AOC) support
Console Male DB9, DTE Type
Network Cables 10/100/1000BASE-T copper: Cat.5, 5e or higher up to 100 meters
10GBASE-X: 62.5/125µm, 50/125µm MMF, 9/125µm SMF
1000BASE-X: 62.5/125µm, 50/125µm MMF, 9/125µm SMF
100BASE-FX: 62.5/125µm, 50/125µm MMF, 9/125µm SMF, BiDi SMF
MAC Addresses Table with 32K entries
VLAN Support 4K
Packet Buffer 16Mbit
LED Indication Per unit: Power, Management status
Per port: Speed/Link/Activity Status

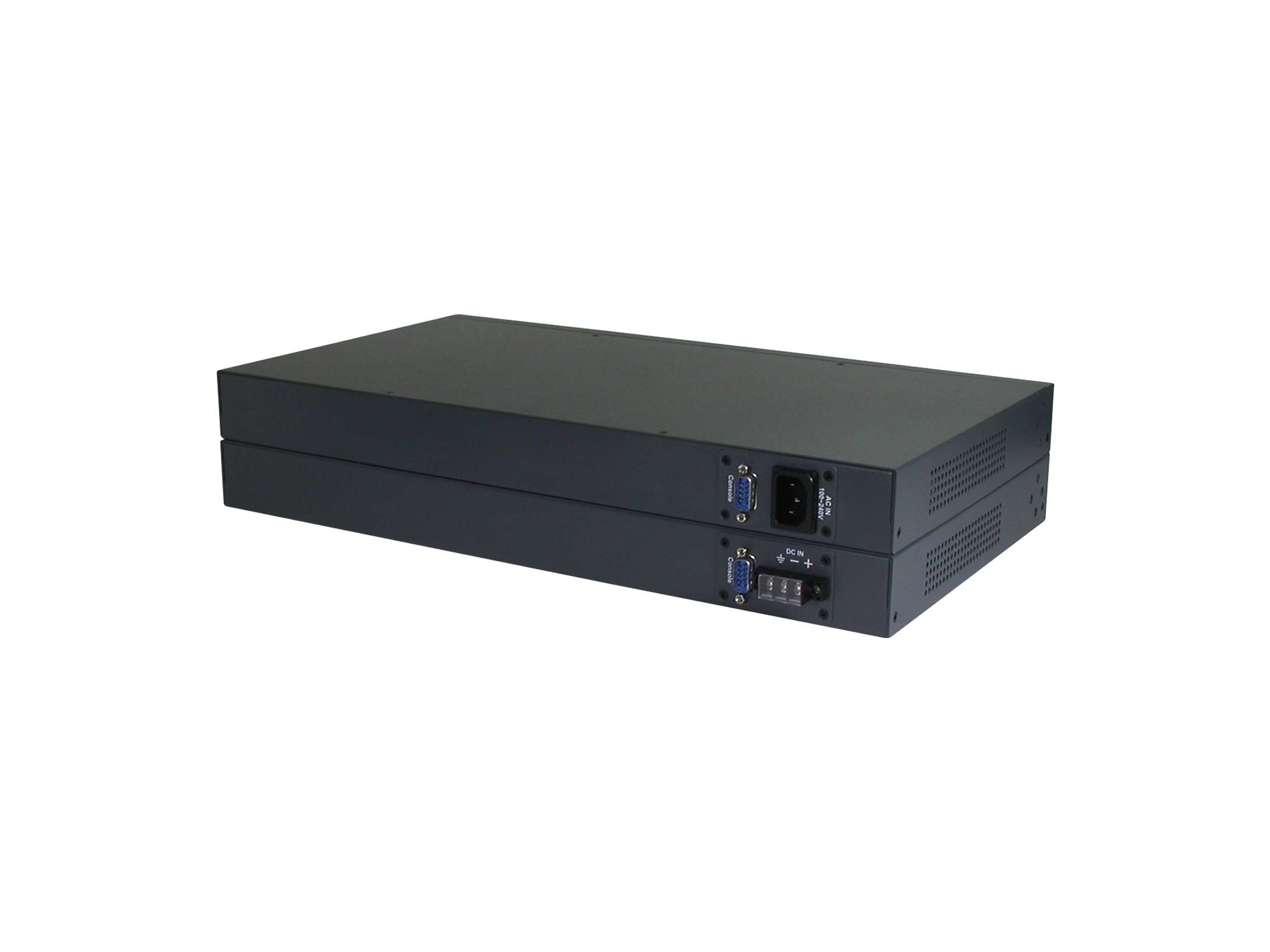

AC Power Input IEC320 receptacle, Operating voltage range: 100 ~ 240VAC
DC Power Input Screw type terminal block
Operating voltage range: +/-40V ~ +/-60V
Power Consumption 48W max.

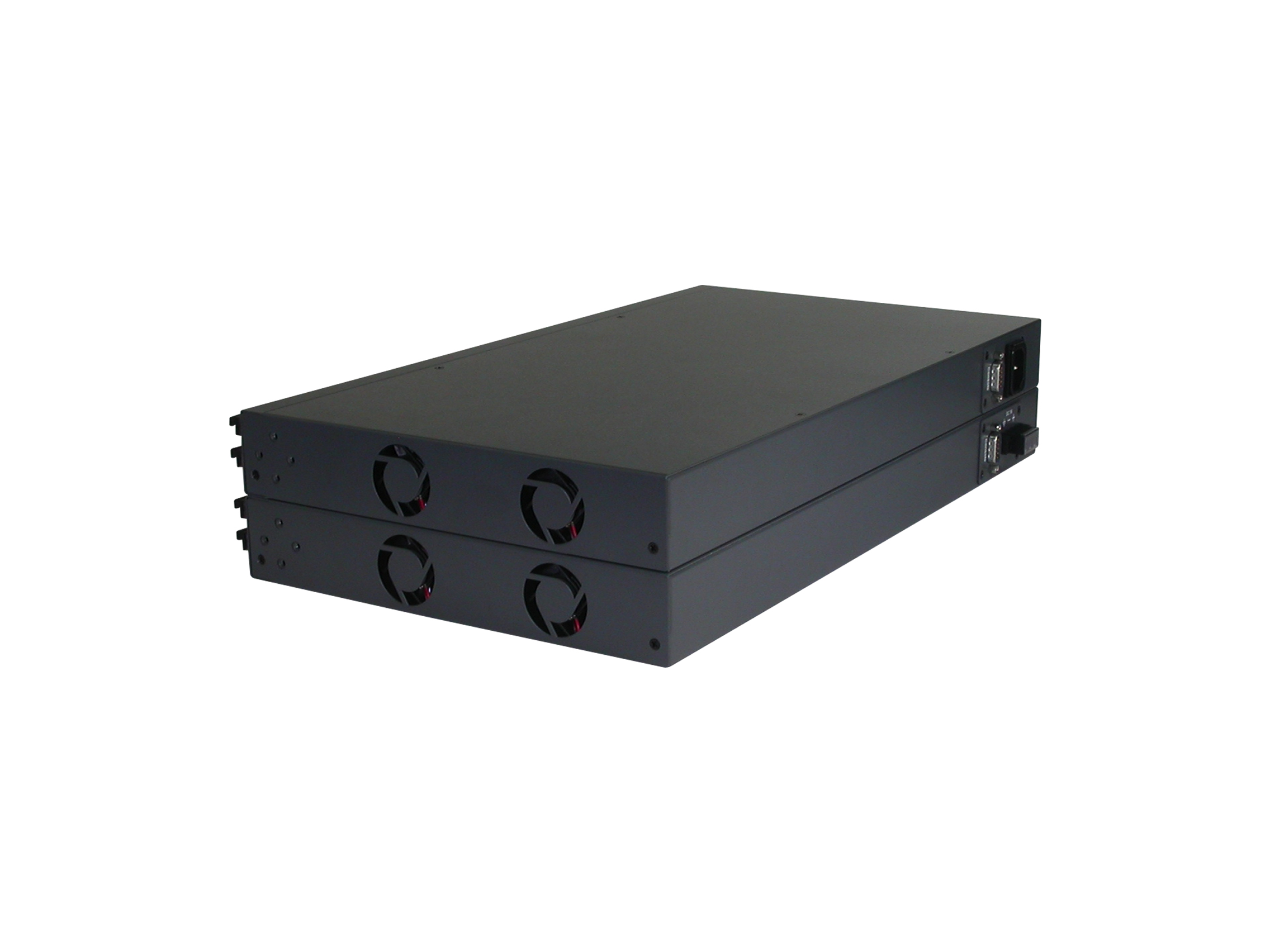

Housing Enclosed metal with fan
Dimension 443 x 245x 43 mm (WxDxH)
Mounting Support 19” rack and wall mountable
Environment Operating Temperature: -5°C ~ 50°C
Storage Temperature: -25°C ~ 85°C
Relative Humidity: 10% ~ 90% non-condensing
Approval FCC Class A, CE mark Class A, VCCI Class A, EN 62368-1 safety
