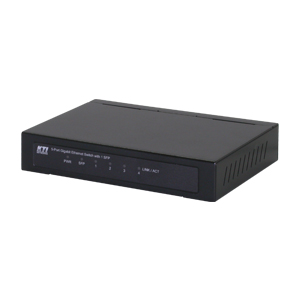

KGS-0500

5-Port GbE Switch with 1 Dual-speed SFP

KGS-0500

5-Port GbE Switch with 1 Dual-speed SFP

The KGS-0500 is a Gigabit Ethernet switch which is featured with the following switched ports:

-Four 10/100/1000Mbps copper ports
-One 1000Base-X SFP port.

Key Features:

  • Provides four tri-speed copper ports and one dual-speed SFP slot
  • All copper ports support auto-negotiation and auto-MDI/MDI-X detection
  • Supports 802.3x flow control for full-duplex and backpressure for half-duplex
  • Supports IEEE802.3az Energy Efficient Ethernet (EEE)
  • Supports jumbo frame length of 9216 bytes at full wire speed forwarding
  • Supports link-up cable length power saving and link-down power saving



Standard IEEE 802.3, 802.3u, 802.3ab, 802.3x
Network Ports 4 10/100/1000Mbps Gigabit copper ports:
Shielded RJ-45, auto-negotiation, auto-MDI/MDI-X support
1 100Mbps or 1000Mbps fiber SFP port:
SFP supports standard SFP fiber transceiver installation
Network Cables 10/100/1000Mbps Copper: Cat. 5, 5e, 6 or higher up to 100m
100/1000Mbps Fiber: MMF 50/125µm, 60/125µm, SMF 9/125µm
MAC Address Table 2K entries
Buffer Memory
128K bytes
LED Indication Per unit: Power
Per copper port: link/activity status
SFP port: link/activity status
Environment Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 70°C
Relative Humidity: 10% ~ 90% non-condensing
Dimension 148 x 107 x 29mm (WxDxH)
Mounting Support Wall, Magnetic
Power Input +5V via external power adapter
Power Consumption 3.5W max. @+5V (DC IN)
Approval FCC Class A, CE mark Class A
